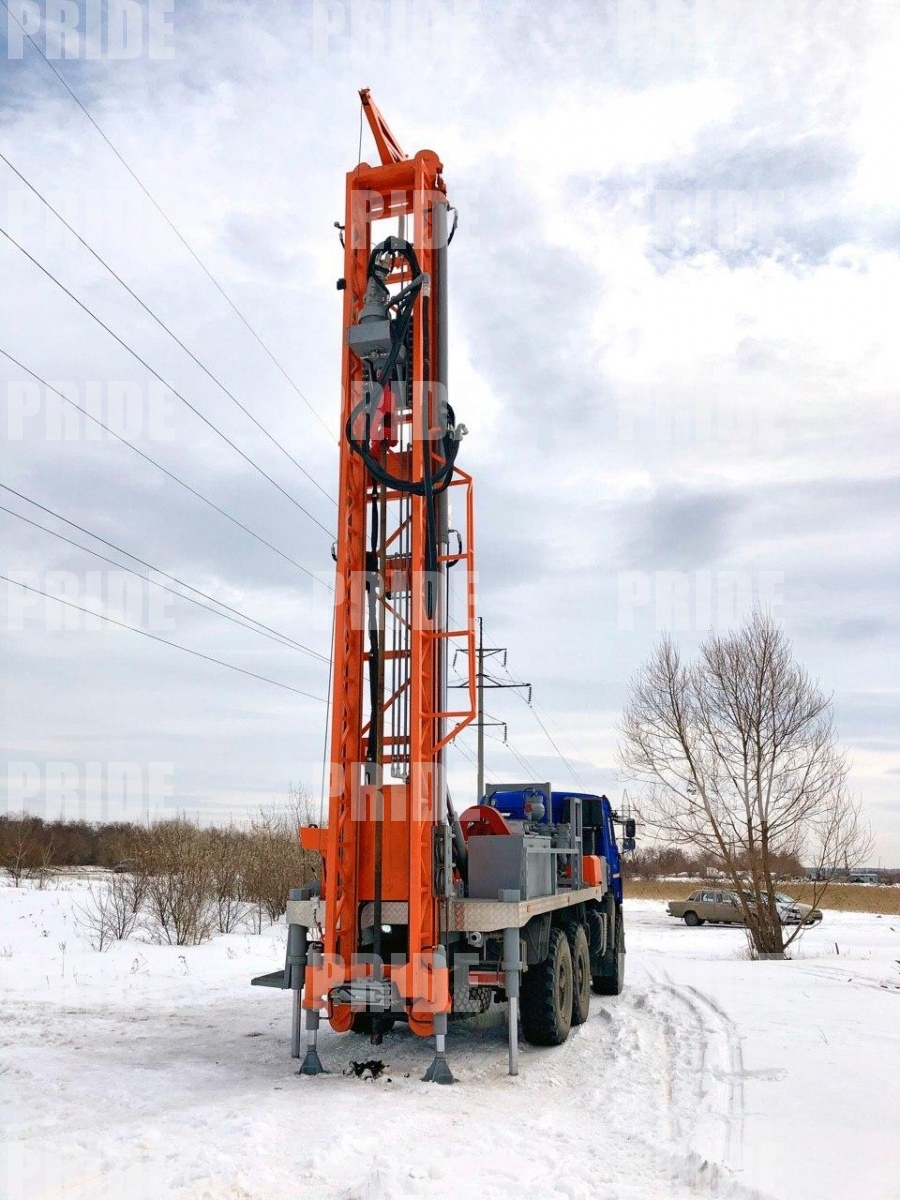

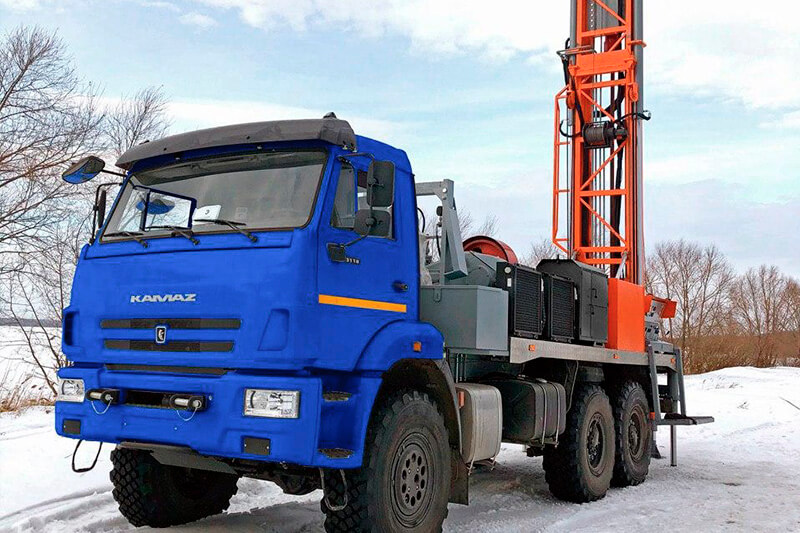

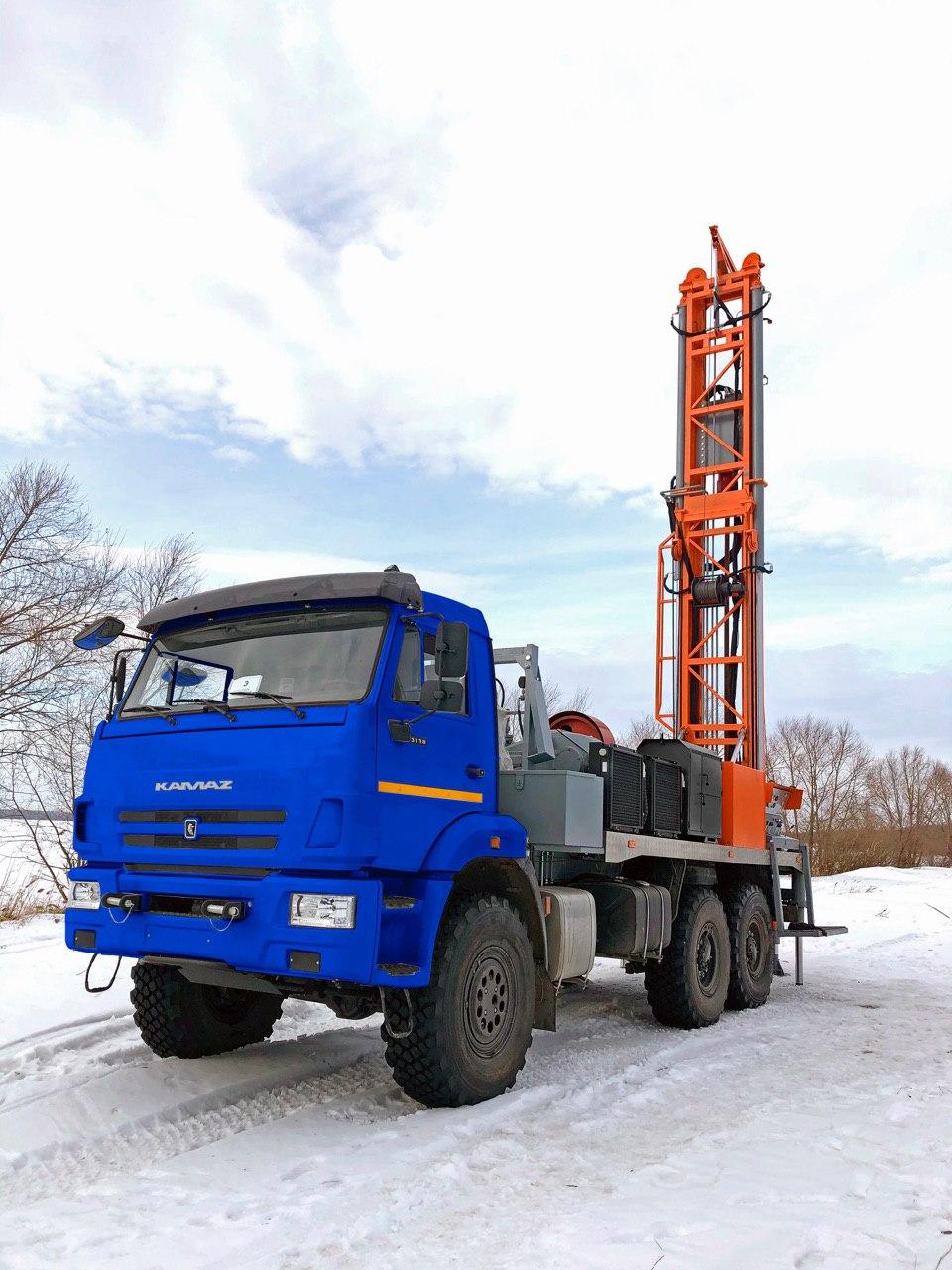

URB - 120 М

URB - 120 М

  • Description
  • Specifications

Description

* The price without the cost of the chassis.
It is possible to complete the rig:
Drilling rig platform - 1 PC;
Outriggers (hydraulic) - 4 PCs;
Drilling winch Assembly g/n 1500 kg - 1 PC;
Drilling pump NB-80 - 1 PC;
Jack hydraulic lifting mast - 2 PCs;
Tool box - 1 PC.;
The rotator drilling rig with hydraulic drive - 1 PCs;
Generator type GD-4004 (33 kW) - 1 PC;
Manifold-1 PC;
Hydraulic drilling rig control system-1 K-t;

Specifications

Conditional depth of drilling, m:

pipes with a diameter of 89 mm
 1050
Recommended diameter of drilling with pipes, mm:
 89
initial, mm
 394
final, mm
 190
Rotor feedrate, mm
 6500
Maximum lifting force, kg
 18000
Maximum pressure on the face, kg
 12000
Rotator

Rotator type
 movable
Maximum torque on the spindle, N*m
 11500
Maximum number of revolutions per spindle, rpm
 180
Winch

Winches type for auxiliary operations hydraulically driven
 гидроприводная
Payload of winch, kg
 1500
Mast

Mast type
 Steel, welded with open front face
Recommended bar length, m
 6,0
Pressure in the system, MPa

working
 16
maximum
 20
