УРБ 2А2

URB 2A2

Description
Specifications

Description

* The price without the cost of the chassis.
The drilling rig URB-2A2 is designed for drilling geophysical and structural exploration wells for oil and gas, exploration of solid minerals, building materials, and groundwater, engineering-geological surveys, drilling of water intake and blast wells. Drilling is performed by a rotational method with washing or purging of the well or augers.

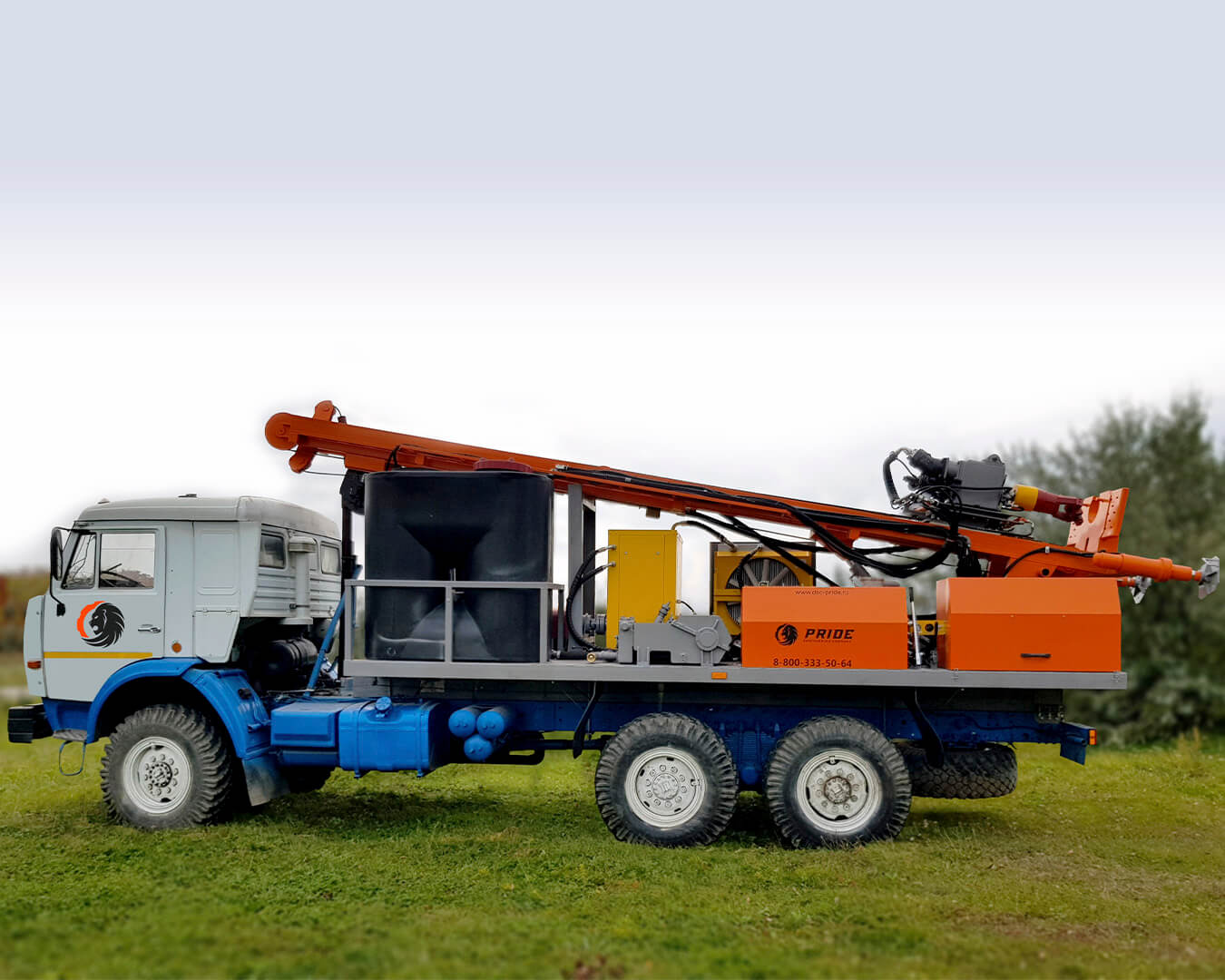

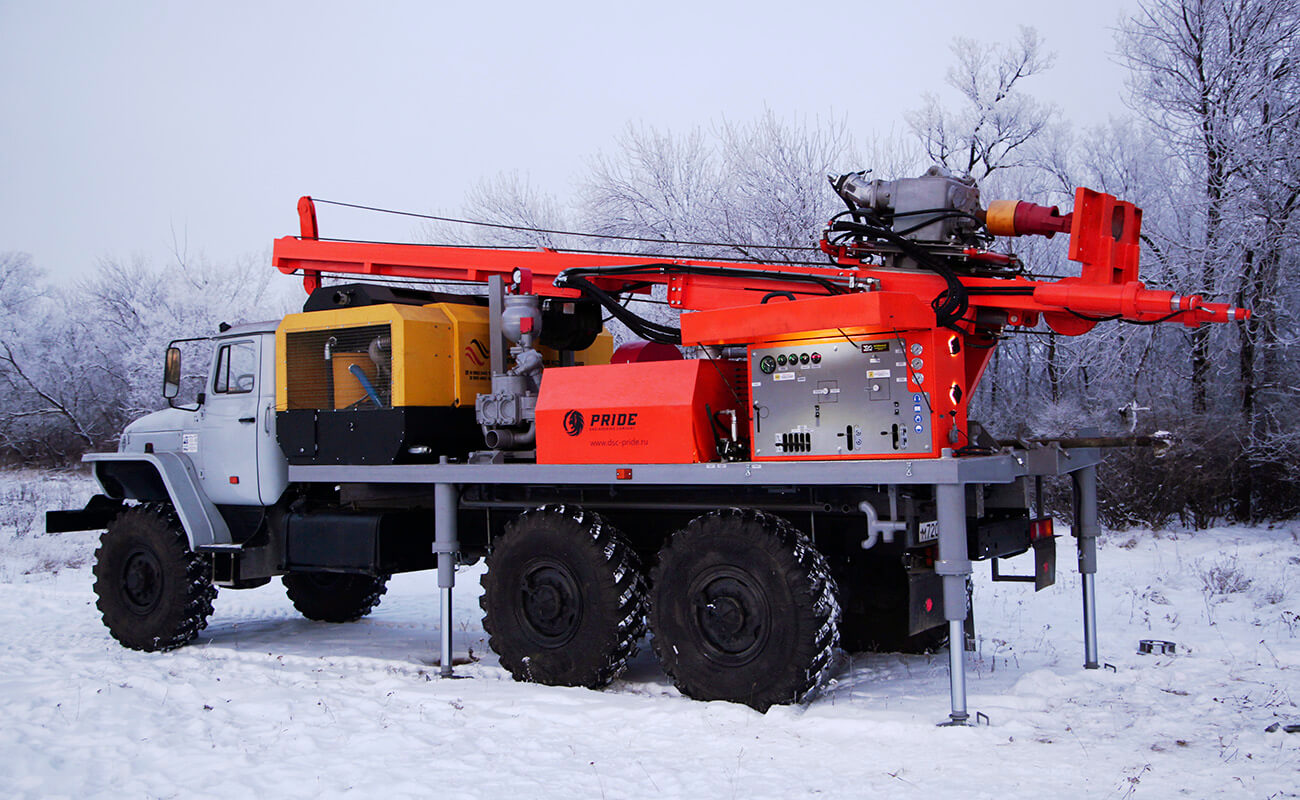

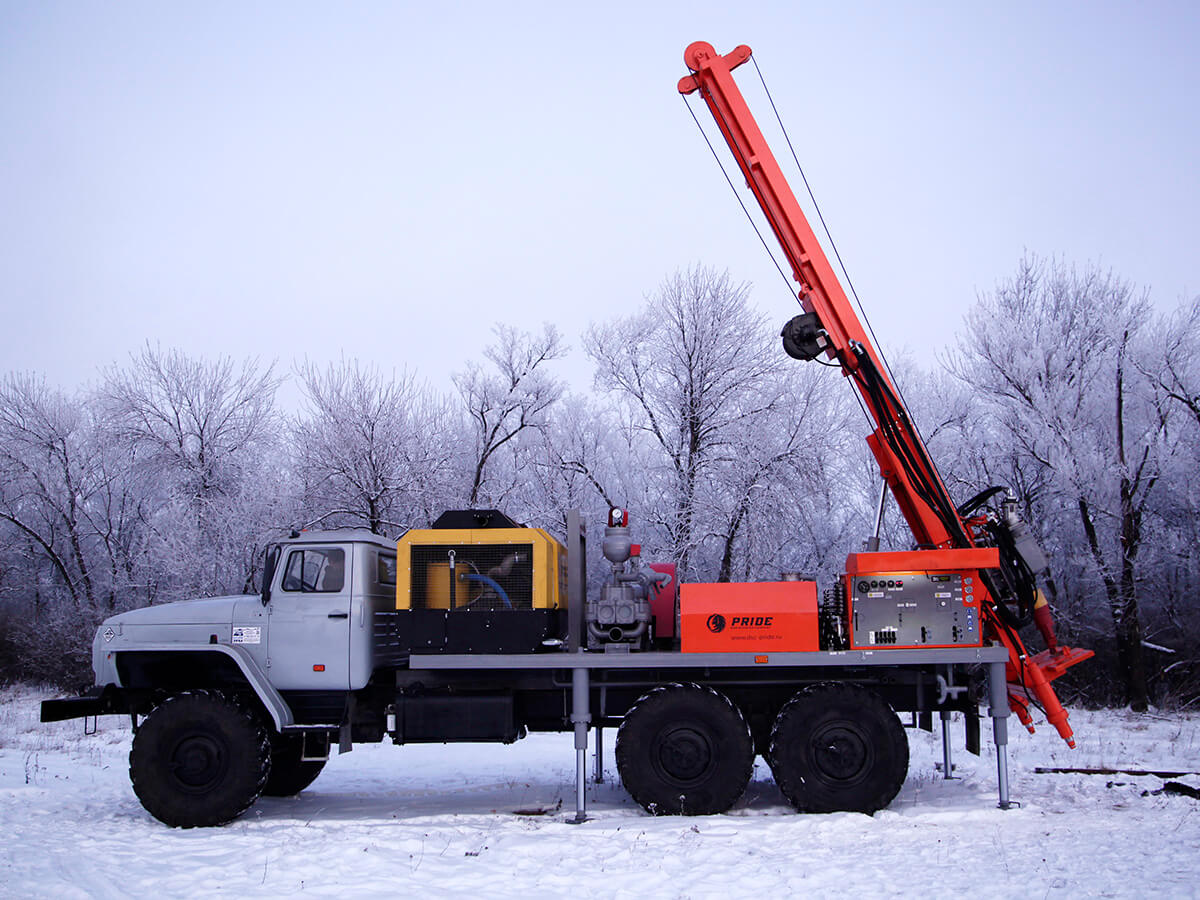

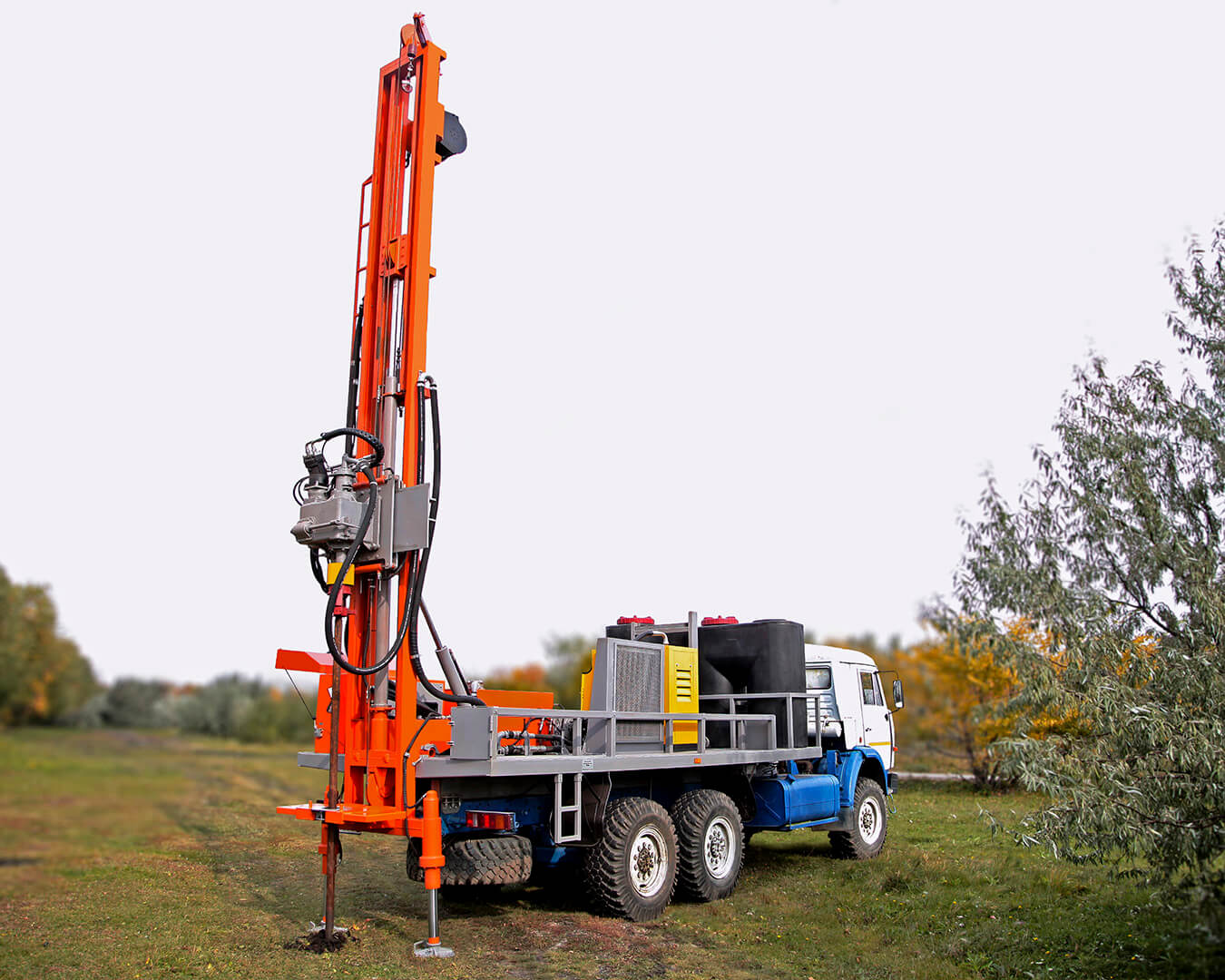

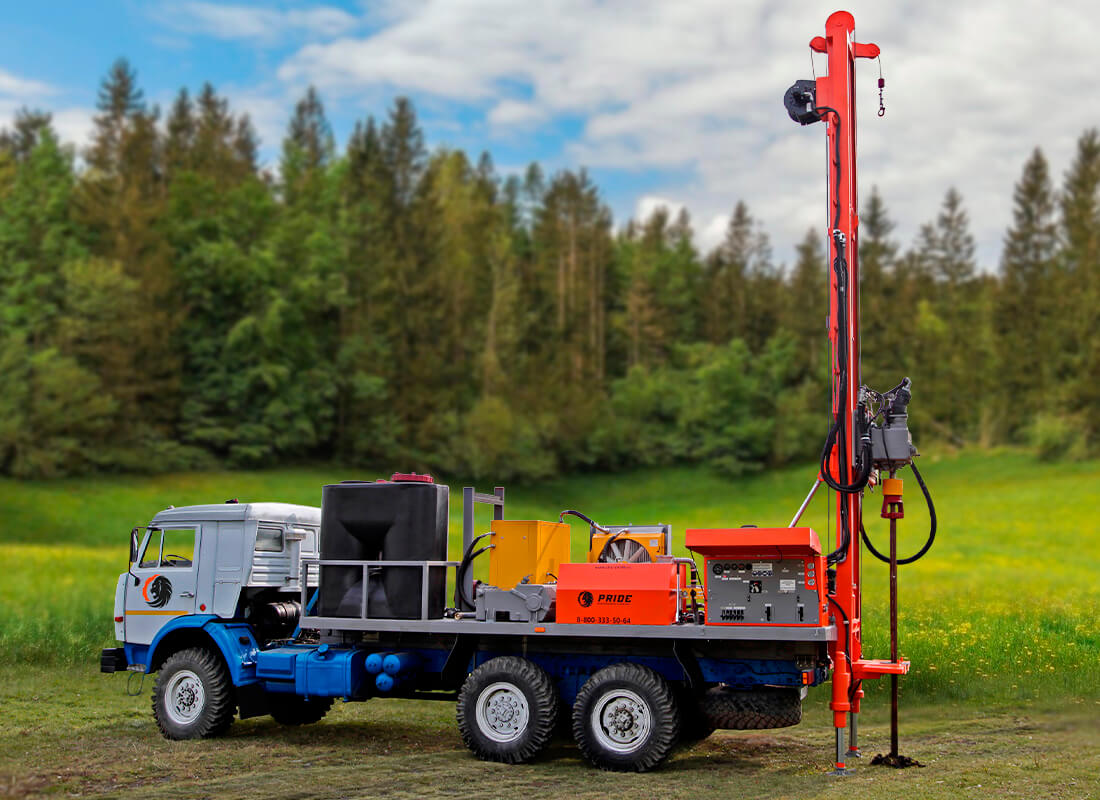

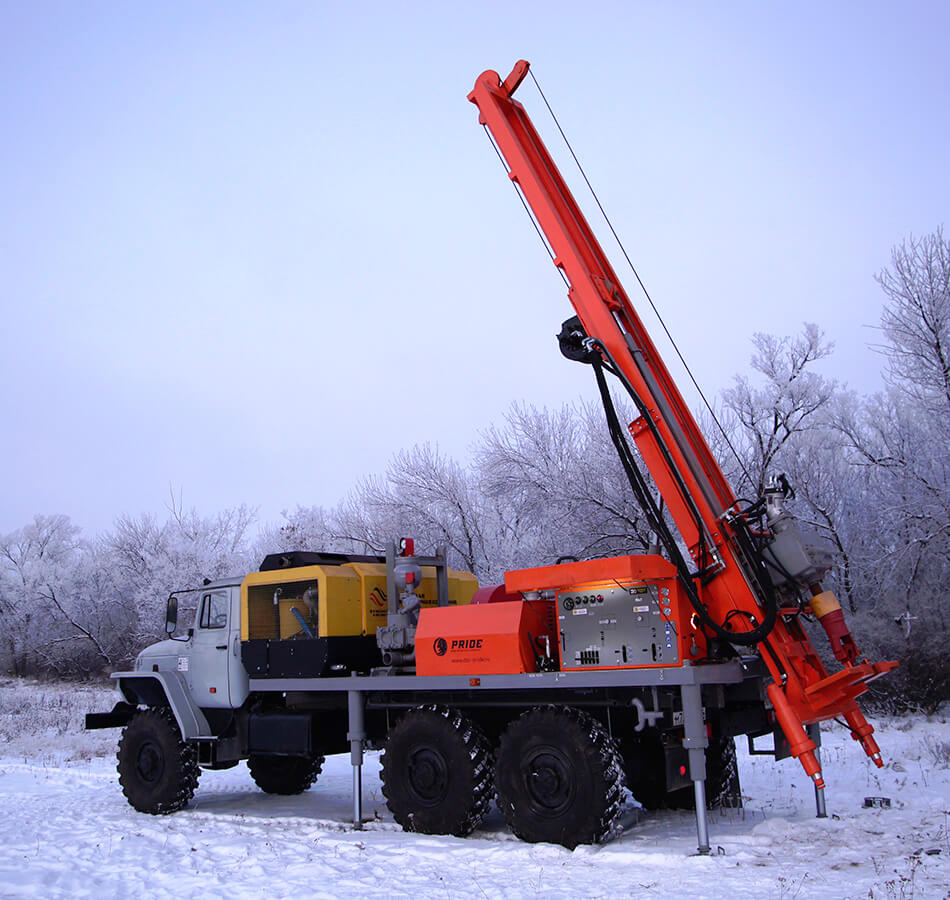

The unit is mounted on the chassis of the Amur-531300, Ural, KAMAZ, MTLB and is driven by the car engine.
Moving along the mast rotator with hydraulic drive is used in drilling, augmentation of the drilling tool on the job and performs together with the hydraulic lift work on the descent (lifting) of the tool and its supply during drilling. The rotator is moved along the mast with the help of a hydraulic cylinder and a hoisting system.
Management of drilling rig tool is hydroficated and fully concentrated on the driller's console. On the remote are the control devices and regulators efforts to slaughter, feed speed and lift, and the frequency of rotation of a spindle of the rotator.

Specifications

Conditional depth of drilling, m:
structurally-search wells with washing	300
geophysical wells
with washing	100
with compressor	60
with augers	40
Initial drilling diameter with flushing, mm	190
Final drilling diameter with flushing, mm
structurally-search wells	93
geophysical wells	118
Diameter of drilling with blowing, mm	118
Diameter of drilling by screws, mm	135
The rotational speed of the drilling rig, rpm	90, 180
The maximum twisting moment, H*m	2500
Feed rate of the rotator, mm	5200
Rate of lifting of the drilling tool, m/s	0-1,1
Working pressure in hydraulic system, mPa	1,6
Lifting capacity of mast lifting cylinder, N (kgf)	58800 (6000)
Effort to rise, kg	4600
Feeding force down, kg	2600
